UIKit: UITextView in Sliding Panel

Dynamic UITextView for input

While SwiftUI is being adopted rapidly by more and more companies/teams let’s not forget that for decades we lived in not just Swift but Objective-C environment with Storyboards and XIBs. You might still come across support or legacy refactoring roles positions with Storyboards experience. That’s how I encountered the following challenge.

Task

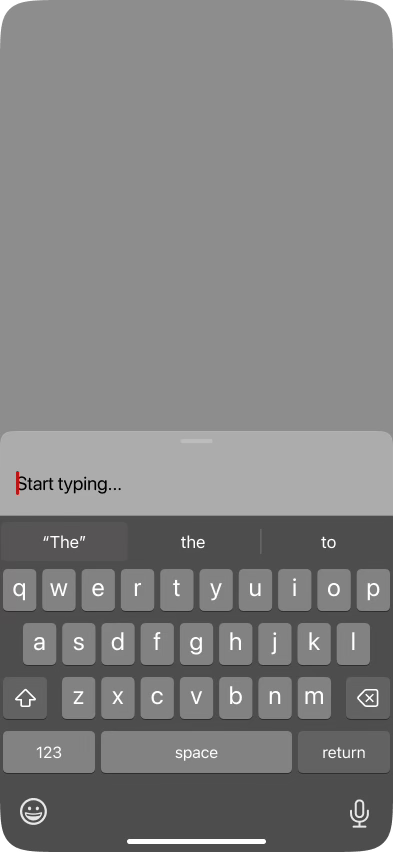

Implement a growing UITextView in sliding panel that has a dark dimmed overlay over presenting VC. Panel grows with content. Can be closed by dragging down. UI below:

Tools

Let’s split the task into separate smaller ones:

• Create KeyboardInputViewController with growing UITextView with paddings and keyboard handling

• Present this VC from parent controller

Let’s start with the first one: growing UITextView. There are multiple implementations across the web but for me GrowingTextView and RSKGrowingTextView are stable and flexible with enough customizations of the field itself and behaviour. You can choose any of them but we will continue with RSKGrowingTextView.

The second one can be solved by UISheetPresentationController. It’s a relatively new class which is made by Apple after years when devs were making their own implementation of sliding panels. By default we have 2 detents: .medium and .large. We can add a custom one and animate it’s change:

if let sheet = parentVC.sheetPresentationController {
  sheet.animateChanges {
     sheet.selectedDetentIdentifier = .medium
  }
}

This looks like a solid out-of-the-box solution. We even have a grabber to drag the panel. However we have no scroll offset of the panel and tap on dimmed area to dismiss. Of course, with a couple of GestureRecognizers it can be solved and there is even a snippet for this. Still, the grabber isn’t customizable, so for our specific needs we will use a well-known FloatingPanel. Popularity and uniqueness of this UI control is remarkable. I’m using it myself for years and it’s working like a charm. Take a closer look if you haven’t seen it before.

Panel content VC

All implementation here is straightforward. We are adding RSKGrowingTextView with anchor to top and bottom. Then bottom constraint is adjusted based on keyboard frame. For AutoLayout you can use any of DSL or activate it natively. For current case will use SnapKit.

import UIKit
import SnapKit
import RSKGrowingTextView

final class KeyboardInputViewController: UIViewController {

    var heightDidChange: ((_ fieldHeight: CGFloat, _ totalHeight: CGFloat) -> Void)?

    private lazy var inputTextView: RSKGrowingTextView = {
        let view = RSKGrowingTextView()
        view.delegate = self
        view.textColor = .black
        view.backgroundColor = .clear
        view.font = .systemFont(ofSize: 19)
        view.maximumNumberOfLines = 10
        return view
    }()
    private var bottomConstraint: Constraint?

    override func viewDidLoad() {
        super.viewDidLoad()
        view.backgroundColor = DesignSystem.Color.floatingBackground
        setupInputTextView()
        registerForKeyboardNotifications()

        //Setting cursor color
        UITextField.appearance().tintColor = .red
        UITextView.appearance().tintColor = .red
    }

    private let topInset = 16.0
    private func setupInputTextView() {
        view.addSubview(inputTextView)
        inputTextView.snp.makeConstraints { make in
            make.leading.trailing.equalToSuperview().inset(topInset)
            self.bottomConstraint = make.bottom.equalTo(view.safeAreaLayoutGuide.snp.bottom).offset(topInset / 2.0).constraint
        }
    }

    override func viewWillAppear(_ animated: Bool) {
        super.viewWillAppear(animated)

        //Small delay to show the keyboard
        Task {
            try? await Task.sleep(for: .milliseconds(300))
            inputTextView.placeholder = "To Search, start typing"
            inputTextView.placeholderColor = DesignSystem.Color.white20
            inputTextView.becomeFirstResponder()
        }

    }

    /// Registering keyboard notifs
    private func registerForKeyboardNotifications() {
        NotificationCenter.default.addObserver(self,
                                               selector: #selector(handleKeyboardWillChangeFrame),
                                               name: UIResponder.keyboardWillChangeFrameNotification,
                                               object: nil)
    }

    //Property to store keyboard height
    private var keyboardHeight: CGFloat = 0.0

    /// Keyboard notification handler
    /// - Parameter notification: notification
    @objc private func handleKeyboardWillChangeFrame(notification: Notification) {
        guard let userInfo = notification.userInfo,
              let animationDuration = userInfo[UIResponder.keyboardAnimationDurationUserInfoKey] as? TimeInterval,
              let animationCurveRawValue = userInfo[UIResponder.keyboardAnimationCurveUserInfoKey] as? UInt else {
            return
        }

        if let keyboardSize = (notification.userInfo?[UIResponder.keyboardFrameEndUserInfoKey] as? NSValue)?.cgRectValue {

            let keyboardHeight = keyboardSize.height
            self.bottomConstraint?.update(offset: -keyboardHeight + topInset)

            let totalHeight = inputTextView.frame.height + view.safeAreaInsets.bottom + topInset + keyboardHeight
            heightDidChange?(inputTextView.frame.height, totalHeight)
            self.keyboardHeight = keyboardHeight

            //Animate UI
            let animationOptions = UIView.AnimationOptions(rawValue: animationCurveRawValue << 16)
            UIView.animate(withDuration: animationDuration, delay: 0, options: animationOptions, animations: {
                self.view.layoutIfNeeded()
            }, completion: nil)
        }
    }


    override func viewDidLayoutSubviews() {
        super.viewDidLayoutSubviews()
        //Calculating new content height
        let totalHeight = inputTextView.frame.height + view.safeAreaInsets.bottom + topInset + keyboardHeight
        heightDidChange?(inputTextView.frame.height, totalHeight)
    }

    deinit {
        NotificationCenter.default.removeObserver(self)
    }
}

extension InputViewController: RSKGrowingTextViewDelegate {
    func growingTextView(_ textView: RSKGrowingTextView, willChangeHeight height: CGFloat) {
        //Animate frame of TextView
        UIView.animate(withDuration: 0.2) {
            self.view.layoutIfNeeded()
        }
    }
}

Gist available

Panel Layout

Now we need a PanelLayout to inject the sizes of our InputViewController. More info can be found here. In general - customizing the layout with FloatingPanelLayout protocol by setting achors and passing height to it.

import FloatingPanel
import UIKit

final class FloatingPanelIntrinsicLayout: FloatingPanelLayout {
    //Our panel content height property
    var contentHeight: CGFloat

    init(initialHeight: CGFloat) {
        self.contentHeight = initialHeight
    }

    var position: FloatingPanelPosition { .bottom }

    var initialState: FloatingPanelState { .half }

    //Anchoring to the bottom of superview
    var anchors: [FloatingPanelState: FloatingPanelLayoutAnchoring] {
        return [
            .half: FloatingPanelLayoutAnchor(absoluteInset: contentHeight, edge: .bottom, referenceGuide: .superview)
        ]
    }

    //Alpha of the backdrop
    func backdropAlpha(for state: FloatingPanelState) -> CGFloat {
        switch state {
        case .full, .half: return 0.5
        default: return 0.0
        }
    }
}

Gist available

Presenter VC logic

Now we need to present it from parent UIViewController. We just need one property to hold FloatingPanelController and a method to initialise it.

import UIKit
import SnapKit
import FloatingPanel

class RemoteViewController: UIViewController {

    //Field height for dismiss handling
    private var searchFieldHeight: CGFloat = 0.0

    private func presentChatPanel() {
        let fpc = FloatingPanelController()
        let inputVC = KeyboardInputViewController()

        fpc.set(contentViewController: inputVC)

        //Panel layout setup
        fpc.surfaceView.appearance.cornerRadius = 12
        fpc.surfaceView.grabberHandle.isHidden = false
        fpc.surfaceView.grabberHandleSize = .init(width: 32, height: 4)
        fpc.surfaceView.grabberHandle.backgroundColor = .gray
        fpc.isRemovalInteractionEnabled = true
        fpc.surfaceView.backgroundColor = .lightGray
        fpc.backdropView.dismissalTapGestureRecognizer.isEnabled = true
        fpc.delegate = self

        // Initially set a height
        fpc.layout = FloatingPanelIntrinsicLayout(initialHeight: 0.0)

        //Tracking height update
        inputVC.heightDidChange = { [weak fpc, weak self] fieldHeight, newHeight in
            Task { @MainActor in
                self?.searchFieldHeight = fieldHeight
                guard let fpc = fpc else { return }
                (fpc.layout as? FloatingPanelIntrinsicLayout)?.contentHeight = newHeight
                fpc.invalidateLayout()
            }
        }

        present(fpc, animated: true, completion: nil)
        fpc.backdropView.backgroundColor = .black
        fpc.backdropView.alpha = 0.8

        floatingPanel = fpc
    }
}

Gist available

Close-on-Drag

As a final touch, we’ll implement auto-dismiss on draw of visible TextView height. For that we will handle FloatingPanelControllerDelegate.

extension ParentViewController: @preconcurrency FloatingPanelControllerDelegate {

    func floatingPanelDidMove(_ fpc: FloatingPanelController) {
        guard fpc.contentViewController is InputViewController else { return }
        //Getting surface location offset
        let minY = fpc.surfaceLocation(for: .half).y + searchFieldHeight
        if fpc.surfaceLocation.y > minY {
            fpc.dismiss(animated: true)
        }
    }

    func floatingPanelDidChangeState(_ fpc: FloatingPanelController) {
        if fpc.state == .tip {
            fpc.dismiss(animated: true)
        }
    }
}

That’s it — happy coding!
